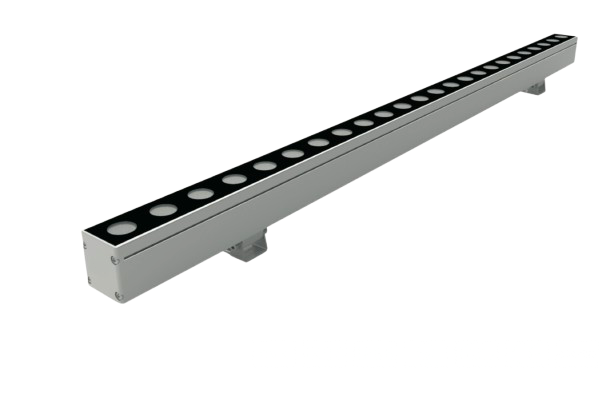

ASTROLINE IP

ASTROLINE IP is ideal for outdoor wall washing / wall grazing lighting applications. It incorporates narrow / medium / wide / elliptical lenses of varying light distribution. Different lengths of extrusion are customisable which can be interconnected, thus easily adapting to different spaces, and due to its small size it integrates easily into the outdoor architecture. The LED power output can go as high as 60W/m and is available in monochromatic as well as color changing (RGB / RGBW) versions. This comes pre-fitted with electrical connectors at both ends, mounting clips and end caps.

Categories: , , Tags: , ,

Description

Technical specifications

  • Lamp category: LED PCB
  • Power (W): 24 / 36 / 48 / 60W
  • CCT (K): 2700K / 3000K / 4000K / RGBW
  • CRI:≥80 / 90
  • Color consistency: < 3 SDCM
  • Initial lumens (lm): 2400lm (3000K) 24W
  • Net lumens (lm): 1872 lm 24W
  • Mountings: Surface Mount
  • Environment: Outdoor Wet Location
  • IP Rating: IP66
  • L70B30 lifespan: 50,000h at Tp

Optical Parameters

  • Lighting type: Direct
  • LED type: Power LED
  • Light distribution: Symmetric / Asymmetric / Elliptical
  • Optical type: Lens
  • Beam angle (°): 15 / 25 / 30 / 60 / 20×60 / 10×60 / 10×40 Deg

Electrical Parameters

  • Operating Voltage: 24VDC
  • Dimmable: Available
  • Driver: Remote
  • Driver type: Dimmable 1-10V, Dimmable DALI 1 / Casambi BLE Mesh / DMX
  • Emergency: Without
  • Insulation class: II

Physical Parameters

  • Body Finish: Grey | White | Black
  • Orientation: Adjustable Mounting Brackets
  • Length (mm): 250 / 500 / 1000
  • Width (mm) : 45
  • Height (mm) : 28.5 (w/0 mounting bracket)
  • Weight (kg): 1.6

Additional information

Weight 1 kg
Dimensions 12 × 5 × 5 cm
Wattage

24W, 36W, 48W, 60W
