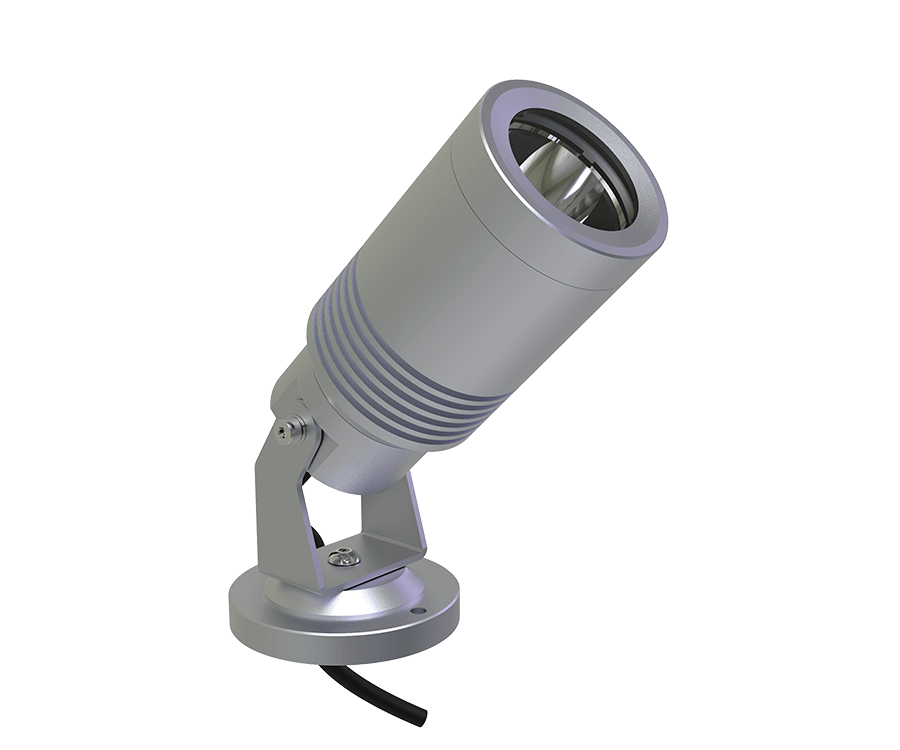

ALTO CANON-M LED Outdoor Projector

0.00

ALTO Canon outdoor projector is a Minimal sized IP67 rated fixture for outdoor applications. It is available in various configurations to meet most of the lighting applications and demands. Different beam angles are available for a host of applications. Low voltage as well as mains voltage versions are available for use.

Description

Technical specifications

  • Lamp category: LED CoB
  • Power (W): 9W Max
  • CCT (K): 2700 / 3000K / 4000K / 6000K
  • CRI:≥90
  • Color consistency: < 3 SDCM
  • Net lumens (lm): 700 lm
  • Mountings: Surface
  • Environment: Outdoors
  • L80B20 lifespan: 50,000h at Tp

Optical Parameters

  • Lighting type: Direct
  • LED type: Power LED
  • Light distribution: Symmetric
  • Optical type: Lens
  • Beam angle (°): 24°(12,15,24,36,60)
  • Accessories: TBD

Electrical Parameters

  • Input Voltage: 24/48VDC; 110-240VAC 50Hz
  • Dimmable: Available
  • Driver: Integral / Remote
  • Driver type: DALI / DMX / Switching
  • Emergency: Without
  • Insulation class: I / III

Physical Parameters

  • Finish / Color: Black / Grey / White
  • IP Ratting: IP66
  • Material: Aluminium
  • Dimensions: M-Ø54 X 111mm

Additional information

CCT

3000K, 4000K, 6000K, RGB, RGBW
